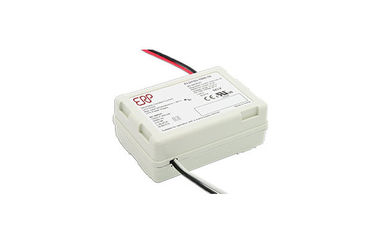

LED Light Accessories Constant Current LED Drivers with Flicker - Free TRIAC Dimming

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

संपर्क करें

विस्तृत उत्पाद विवरण

Power:	9W/12W/18W	Nominal Input:	120 Vac or 230 Vac
Power Factor:	≥ 0.9	Output voltage:	5 V to 48 V
Output current:	240 mA to 1.5 A	Compact size:	82 x 56 x 29 mm
हाई लाइट:	led lighting accessories , led lighting parts

Features

120 Vac or 230 Vac nominal input
Active power factor correction (PF) ≥ 0.9
(PF ≥ 0.8 for 230 Vac models below 10 W)
High efficiency: 80~85%
Compatible with industry standard TRIAC and ELV dimmers
10% to 100% dimmable output
Output current: 240 mA to 1.5 A (see list of models for details) with ±5% accuracy of set point
Output voltage: 5 V to 48 V (see list of models for details)
Short circuit, over-current, over-voltage, and over-temperature protection with auto-recovery
Conducted and radiated EMI: FCC part 15 class B and EN55015 class B compliant
Enables ENERGY STAR® luminaire compliance
Rectangular plastic case. Compact size: 82 x 56 x 29 mm (3.23 x 2.20 x 1.14 in)
IP20-rated case with silicone-encapsulation
90°C maximum case temperature
Lifetime: 50,000 hours at 70°C case temperature
Class II power supply
Worldwide safety approvals

Applications

120 Vac Nominal Input Voltage

ERP Part Number	Nominal Input Voltage (Vac)	Iout Set Point +/-5% (mA)	Max Output Power (W)	Output Voltage Range (Vdc)

ELP009U-0200-42	120	200	8.4	24 - 42
ELP009U-0250-41	120	250	10.25	24 - 41
ELP009U-0350-21	120	350	7.35	12 - 21
ELP009U-0480-13.5	120	480	6.48	10 - 13.5
ELP009U-0600-12	120	600	7.2	8 - 12
ELP009U-0700-12	120	700	8.4	7.5 - 12
ELP009U-0800-12	120	800	9.6	8 - 12

ELP012U-0285-36	120	285	10.26	22 - 36
ELP012U-0300-41	120	300	12.3	24 - 41
ELP012U-0350-32	120	350	11.2	18 - 32
ELP012U-0440-24	120	440	10.56	12 - 24
ELP012U-0700-16	120	700	11.2	6 - 16
ELP012U-0900-12	120	900	10.8	8 - 12
ELP012U-1000-12	120	1000	12	7.5 - 12

ELP018U-0350-42	120	350	14.7	24 - 42
ELP018U-0350-48	120	350	16.8	24 - 48
ELP018U-0440-34	120	440	14.96	20 - 34
ELP018U-0450-41	120	450	18.45	24 - 41
ELP018U-0460-36	120	460	16.56	22 - 36
ELP018U-0500-36	120	500	18	25 - 36
ELP018U-0550-28	120	550	15.4	11 - 28
ELP018U-0630-24	120	630	15.12	16 - 24
ELP018U-0700-24	120	700	16.8	12 - 24
ELP018U-0800-20.1	120	800	16.08	13 - 20.1
ELP018U-0900-16	120	900	14.4	10 - 16
ELP018U-1000-16	120	1000	16	10 - 16
ELP018U-1200-13.2	120	1200	15.84	10 - 13.2
ELP018U-1250-12	120	1250	15	8 - 12
ELP018U-1260-11.25	120	1260	14.175	8.25 - 11.25
ELP018U-1400-12	120	1400	16.8	8 - 12
ELP018U-1500-10	120	1500	15	5 - 10

230 Vac Nominal Input Voltage

ERP Part Number	Nominal Input Voltage (Vac)	Iout Set Point +/-5% (mA)	Max Output Power (W)	Output Voltage Range (Vdc)

ELP009E-0200-42	230	200	8.4	24 - 42
ELP009E-0350-21	230	350	7.35	12 - 21
ELP009E-0480-13.5	230	480	6.48	10 - 13.5
ELP009E-0600-12	230	600	7.2	8 - 12
ELP009E-0700-12	230	700	8.4	7.5 - 12
ELP009E-0800-12	230	800	9.6	8 - 12

ELP012E-0350-32	230	350	11.2	18 - 32
ELP012E-0440-24	230	440	10.56	12 - 24
ELP012E-0700-16	230	700	11.2	6 - 16
ELP012E-0900-12	230	900	10.8	8 - 12
ELP012E-1000-12	230	1000	12	7.5 - 12

ELP018E-0350-42	230	350	14.7	32 - 42
ELP018E-0350-48	230	350	16.8	24 - 48
ELP018E-0440-34	230	440	14.96	20 - 34
ELP018E-0460-36	230	460	16.56	22 - 36
ELP018E-0500-32	230	500	16	18 - 32
ELP018E-0500-36	230	500	18	25 - 36
ELP018E-0630-24	230	630	15.12	16 - 24
ELP018E-0700-24	230	700	16.8	16 - 24
ELP018E-0800-20.1	230	800	16.08	13 - 20.1
ELP018E-0900-16	230	900	14.4	10 - 16
ELP018E-1000-16	230	1000	16	10 - 16
ELP018E-1200-13.2	230	1200	15.84	10 - 13.2
ELP018E-1250-12	230	1250	15	8 - 12
ELP018E-1400-11.5	230	1400	16.1	8 - 11.5
ELP018E-1400-12	230	1400	16.8	8 - 12
ELP018E-1500-10	230	1500	15	5 - 10
