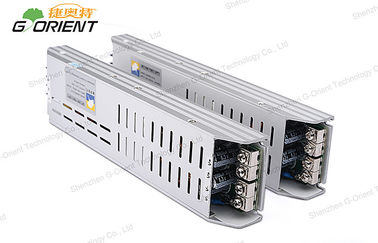

High PFC Industrial Power Supply 200W 5V / 40A with CE RoHS Approved

उत्पाद विवरण:

Place of Origin:	China
ब्रांड नाम:	G-ORIENT
प्रमाणन:	ISO9001 / CE / ROHS / FCC
Model Number:	NHP200-5-A

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	10pcs
मूल्य:	negotiable
Packaging Details:	20pcs/16Kgs / CARTONS
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal, L/C, Western Union
Supply Ability:	50,000pcs per month

संपर्क करें

विस्तृत उत्पाद विवरण

Output:	5V DC / 40A	Output power:	200W
Size:	2125829mm	Power factor:	>0.95
High efficiency:	90%	Input:	100-240V AC
हाई लाइट:	5v 12v power supply , constant voltage power supply

High PFC Industrial Power Supply 200W 5V / 40A with CE RoHS Approved

Features:
* Synchronous rectification,high power factor>0.95
* High efficiency up to 90%
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty

Company Advantage:
* Professional R&D team
* Standardized production process
* Best after sale service
* High quality products
* Short lead time
* Cheap wholesale price

Specifications:

Switching power supply		NHP200-5-A
OUTPUT	DC Voltage	5V
	Current Range	0~40A
	Rated Current	40A
	Rated Power	200W
	Ripple & Noise(max.)	<200mVp-p
	Regulation	≦+/-3%
	Leakage current	≦3.5mA
INPUT	Voltage Range	100-240V AC
	Frequency Range	47-63Hz
	Efficiency(Typ.)	90%
Environment	Storage Temperature	-40 ~ +85℃
	Operaing Temperature	-40 ~ +80℃
	Relative Humidity	10%-95%
	Cooling	Natural convection
Safety	Safety standards	CE
Withstand Voltage	Input-output withstand vol.	3000Vac/10mA/1min
	Input-FG withstand vol.	1500Vac/10mA/1min
	Output-FG withstand vol.	500Vac/10mA/1min
Others	Dimension	2125829mm (LWH)
Others	Packing

Competitive Advantage:
* Ultra-thin 29mm
* High efficiency up to 90%
* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
* Synchronous rectification+PFC
* Ultra-low start up temperature-40℃
* CE / ROHS / FCC approval

Applications:
* Digital and electronic products;
* Advisement player
* Electrical equipment, Instrumentation;
* Communications and security products.
* LED display,LCD TV, LED TV
* Display screen,LED video wall
