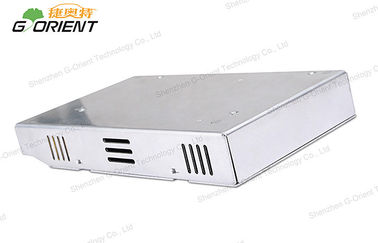

High Efficiency 180W Switched Power Supply IP20 for LED Screen

High Efficiency 180W Switched Power Supply IP20 for LED Screen

  • High Efficiency 180W Switched Power Supply  IP20 for LED Screen
  • High Efficiency 180W Switched Power Supply  IP20 for LED Screen
High Efficiency 180W Switched Power Supply  IP20 for LED Screen
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: G-ORIENT
प्रमाणन: ISO9001 / CE / ROHS / FCC
Model Number: NHI200-4.5-A
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 10pcs
मूल्य: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS,Carton Size:33*20*18cm
Delivery Time: 10 - 15 working days after received your payment
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 50,000pcs per month
संपर्क करें
विस्तृत उत्पाद विवरण
Product Name: Single Output Switching Power Supply Output: 4.5V DC / 40A
Operating temperature: -40℃ ~ +60℃ Output Power: 180W
IP Grade: IP20 Input: 200-240V AC
High efficiency: 85% Ripple & Noise: ≤250mVp-p
हाई लाइट:

led light power supply

,

adjustable power supply


 High Efficiency 180W Switched Power Supply  IP20 for LED Screen


Competitive Advantage:
* synchonous rectification
* High efficiency up to 85%
* Ultra-thin 30mm
* Ultra-low start up temp.(- 40℃)
* CE / ROHS / FCC approval
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Small size,ultra-light and easy to install


Applications:
* urban landscape lighting
* LED Lighting
* Stage
* Military project
* Communication security equipment
* indoor and outdoor advertising screens
* New energy and other Various industries


Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process



Specifications:

Switching power supply

 NHI200-4.5-A

 OUTPUT

DC Voltage

 4.5V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 180W

Ripple & Noise(max.)

 <250mVp-p

Voltage ADJ.Range

 4.05~4.95V

Voltage Tolerance

 +/- 2.0%

Line Regulation

 +/- 0.5%

Load Regulation

 +/- 1.0%

Setup,Rise Time

 1000ms,50ms/230VAC

Hold up time

 20ms/230VAC

 INPUT

Voltage Range

 200-240VAC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 83-88%

AC Current

 2.5A/230VAC

Inrush Current(max.)

 55A/230VAC

Leakage Current

 < 3.5mA /240VAC

 Protection

Over Load

 105 ~ 150% rated output power

 Protection type: Constant current limiting,recovers   automatically after fault condition is removed

Over Voltage

 5.2 ~ 6.3V

 Protection type: Shut down O/P voltage,re-power on to recover

Over Temperature

 100℃ +/- 5℃

 Protection type: Shut down O/P voltage,recovers automatically after temperature goes down

 Environment

Working Temp.

 -40 ~ +60℃ (Refer to output load derating curve)

Working Humidity

 20 ~ 90% RH, non-condensing

Storage Temp., Humidity

 -40 ~ +85℃, 10 ~ 95% RH

Temp.Coefficient

 +/-0.03%/℃ (0 ~ 50℃)

Vibration

 10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes

 Safety

Safety standards

 UL60950-1 approved

Withstand Voltage

 I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

 Others

MTBF

 271.9K hrs min. MIL-HDBK-217F(25℃)

Dimension

 190*85*30mm (L*W*H)

Packing

 0.8kg; 20pcs/16Kgs

 Note

1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

3. Tolerance: includes set up tolerance,line regulation and load regulation.

4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage




Features:
* Low cost,high reliability
* 2 years warranty
Cooling by free air convection
AC input range selectable by switch
Protections:Short circuit / Overload / Over voltage / Over temperature
* Withstand 300vac surge input for 5 second
* Built-in constant current limiting circuit
* 100% full load burn-in test
