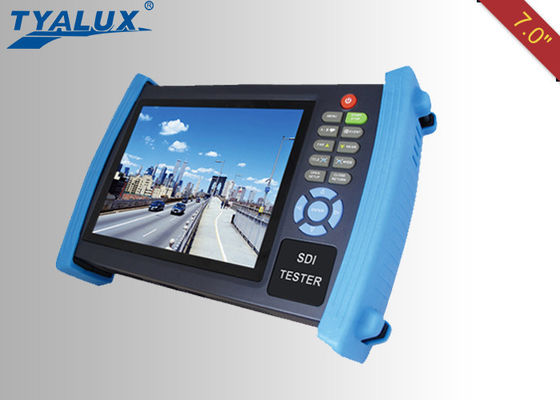

CCTV IP Camera Tester / HD SDI CCTV Tester , 7 inch Screen

उत्पाद विवरण:

Place of Origin:	China
ब्रांड नाम:	Tyalux
प्रमाणन:	CE/ROHS/FCC/ISO9001:2008
Model Number:	TYL-TPM55LUX-86

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	2 pcs
मूल्य:	negotiation
Packaging Details:	Carton Box, Wooden Box, Flight Case
Delivery Time:	7 working days after payment
Payment Terms:	T/T or L/C western Union
Supply Ability:	6000 pcs per month

संपर्क करें

विस्तृत उत्पाद विवरण

Max. Consumption:	270W	Max. Resolution:	(Full HD) 1920 x 1080P
Product Size:	1850(L)x820(W)x75(D)mm	Viewable Area:	178°(H)/178°(V)
Dot Pitch:	0.63(H) x 0.63(V) mm	Contrast Ratio:	4000:1
Screen Ratio:	16:9	Control Signal:	Remote Control, Micro switch
हाई लाइट:	IP Camera Tester , ip cctv tester

7 inch touch screen CCTV IP camera tester with multimeter and Video level meter

Description:

◆ SDI HD digital camera test,1 Video in & 1 Video out

◆ Compatible with more than 30 protocols,such as PELCO-D/P,Samsung,Panasonic,Lilin,Yaan,etc.

◆ Video player,support MP4,H.264,MPEG4,MKV format.

◆ Send color bar image to the analog video output port(White,Red,Green,Blue,black ) to test video transmission channel to check if there is bright and black spots in the screen,

◆ Video Signal Peak level,SYNC level,Color Burst measurement to check the transmission channels.

◆ Analog camera display,PTZ control,Photograph,Video record and playback.LCD brightness/Contrast/Color Saturation are adjustable.

◆ Quickly search the IP address

◆ Check if the IP address occupied

◆ Test if the connected IP camera or other network equipment's Ethernet port works normally and if the IP address correct.

◆ Send special signal to make the connected POE port flicker at special frequency to find the connected ethernet cable easily and quickly.

◆ Cable scan(search BNC cable,Cat 5/6,Twist Pair,coaxial cable etc).Send special signal by UTP port,"BNC out" port to find the connected cable easily.Four Audio types optional.

◆ Used for testing and recognizing 2 or above arbitrary cable wires get accessed, on which shown the connected cable of sequence and identifier No.

◆ Captures the protocol from the controlling system and display command data.

◆ Useful for the engineer to install and maintain security system at night.

◆ PSE and POE Voltage measurement

Specifications:

Display	7 inch TFT-LCD,800×600 resolution
HD-SDI signal	SDI video in (BNC)1,SDI video out(BNC)1
Analog video signal	BNC video in 1,BNC video ou1 Pal/NTSC auto-change
HDMI signal	HDMI in 1 support 19201080P
VGA signal	VGA in *1
Video level meter	video Peak level,SYNC level,Color Burst measurement
Audio input	test if the audio of other equipments works normally
PTZ Protocol	Support more than 30 protocols,such as RS232/RS485,PELCO D/P,Samsung,Panasonic,Lilin,Yaan,etc.Baudrate:600-115200 bps
Color bar generator	Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red,green,blue,white and black color)
UTP cable tester	Used for testing and recognizing 2 or above arbitrary cable wires get accessed, on which shown the connected cable of sequence and identifier No.
Data Monitor	Capture and display the command data of RS485/RS232 from controlling device
Photograph,Video record and playback	Snapshot,Video record,view the storage file in the SD card
Communication port	10/100M adjustable,RJ45
Network testing	IP address scan,Link monitor,PING test,Scan the ID of the PTZ camera quickly
POE tester	Display the power supply voltage and the cable connection status

Cable scan	Search the cable by the audio signal
Power out-1	DC 12V output,Max.2A
Power out-2	DC 5V output,Max.2A
Power adapter	DC12V 2A
Battery	Built-in 7.4 V polymer li-ion battery,capacity of 6500mAh
Rechargeable	working time lasts 16 hours after 8-10 hours charged.
Operation setting	English/Chinese OSD menu optional
Auto off	5-60 mins

Applications:

◆ The SDI HD Tester is developed for the On-site installation and maintenance of the video monitoring system.It can be used for SDI HD digital camera and analog camera,with PTZ control and video in/video out.Easy operation and can improve working efficiency

◆ New developed function with IP address search,PING,port flicker,Network testing etc.Also included video in / out of SDI digital camera and analog camera,PTZ control,color bar generator,video level testing.It is an ideal tool for CCTV security system of SDI digital camera and anolog camera.
