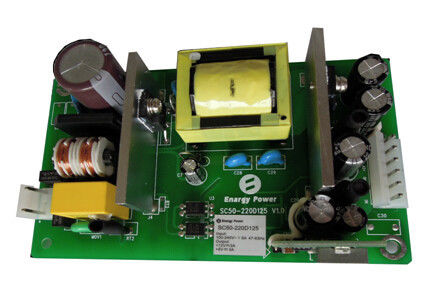

IEC60601-1-2 50W AC-DC Power Supplies Output 12V 5V Power converter SC50-220D125

IEC60601-1-2 50W AC-DC Power Supplies Output 12V 5V Power converter SC50-220D125

  • IEC60601-1-2 50W AC-DC Power Supplies Output 12V 5V Power converter SC50-220D125
IEC60601-1-2 50W AC-DC Power Supplies Output 12V 5V Power converter SC50-220D125
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: Enargy
Model Number: SC50-220D125
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1pcs
मूल्य: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
संपर्क करें
विस्तृत उत्पाद विवरण
हाई लाइट:

12v ac/dc power supply

AC-DC Power Supplies 50W Output 12V5V SC50-220D125





Key Features

AC input range: 90~264Vac

Dual outputs: 12V/3.0A,5V/3.0A

High efficiency: 85%

Line regulation: ≤±2%

Load regulation: ≤±2%

short circuit protection

Output over current protection

Output over voltage protection

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage

100

220

240

Vac



AC input voltage range

90



264

Vac



Rated AC input frequency



50/60



Hz



AC input frequency range

47



63

Hz



Max. input current





1.5

A

Min. input voltage, full load

Input inrush current





60

A

240Vac,25℃, first start

Efficiency

85





%

220Vac, full load



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

5V

4.90

5.00

5.10

Vdc



12V

11.76

12.00

12.24

Vdc



Output current range

5V

0



3.0

A



12V

0



3.0

A



Line Regulation





±2

%



Load Regulation





±2

%



Ripple & noise

5V





100

mV

Rated input, full load, 20 MHz bandwidth

12V





150

mV

Rated input, full load, 20 MHz bandwidth

Dynamic response

Deviation





±5

%

25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 0.1A/us

Settling time





400

uS

To within 1% Vout nom.

Turn-on rise time





50

ms

Full load,10%~90% Vout

Output voltage overshoot





±5

%



Output Capacitance





2200

μF





Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output over voltage protection

13



16

Vdc

Latch off

Output over load protection

5.0



7.0

A

Hiccup

Short – Circuit Protection





10

Hiccup



General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

250





KHrs

Rated input, full load,25℃

Weight





180

g





Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

0



+70



Storage temperature

-20



+85



Relative humidity

20



90

%RH



Storage humidity

10



95

%RH



Altitude





3000

m





Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

4000





Vac

10mA/1min, No arcing and breakdown

Input to ground

1500





Vac

Output to ground

500





Vac

10mA/1min, No arcing and breakdown

Isolation resistance

Input to output

10





500Vdc/1min, normal atmospheric pressure, 90% humidity



EMC Characteristics

Item

Standards

Conditions

Notes

CE

EN55011

IEC60601-1-2

Class B

Pass system test

RE

EN55011

IEC60601-1-2

Class B

Pass system test

Harmonic

EN61000-3-2

Class A equipments requirements

Criterion B

Voltage fluctuations and flicker

EN61000-3-3

Class A equipments requirements

Criterion B

Surge

EN61000-4-5

Differential mode ±1KV,common mode±2KV

Criterion B

DIP

EN61000-4-11

EN55024

Voltage dip to 0%Ut,10ms

Criterion B, test at phase 0, 90, 180 and 270



Voltage dip to 40%Ut, 20ms

Voltage dip to 70%Ut,50ms

ESD

Air discharge

EN61000-4-2

±8KV

Criterion B

Contact discharge

EN61000-4-2

±4KV

Criterion B



Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.



Physical Information

Mechanical Outline

Length×width×heigth:127.0×76.0×37.0(mm), 5×2.99×1.46(in),

IEC60601-1-2 50W AC-DC Power Supplies Output 12V 5V Power converter SC50-220D125 0



Connector designations



Item

No.

Function

J1

1

L input

2

NC

3

N input

J3

1

12V vout+

2

5V vout+

3

5V vout+

4

Vout-

5

Vout-

6

NC



Notes:

Derating curve of the module when ambient temperature over 50℃



IEC60601-1-2 50W AC-DC Power Supplies Output 12V 5V Power converter SC50-220D125 1
