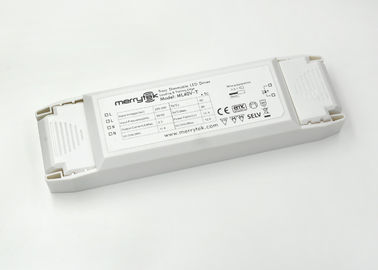

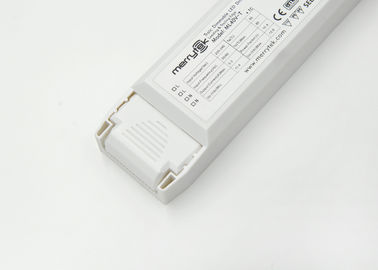

White Plastic Enclosure Constant Voltage Dimmable LED Driver 12Vdc 50 / 60Hz

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	100pcs
मूल्य:	Negotiation
Packaging Details:	Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time:	1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability:	10,000pcs per month

संपर्क करें

विस्तृत उत्पाद विवरण

Product Name:	12Vdc 40W constant voltage dimmable led driver	Output voltage:	12vdc
dimming mode:	Traic	Output current:	3.33mA
Input Voltage:	220-240Vac	output load:	40W max
Working Temperature:	-25℃-50℃	Isolation Class:	Class II, SELV
Approvals:	CE	Protection Class:	IP20
हाई लाइट:	24v constant voltage led driver , 12v constant voltage led driver

Constant Voltage 12Vdc 40W Traic Dimmable LED Driver, Dimmable with RC Dimmer

Description:

1. Constant voltage 12Vdc

2. Dimming RC dimmer

3. It can match with Schneider, Simon,JUNG, DEBERKE, BUSCH, GIRA.

5. No flickering.

6, Leading-edge and trailing-edge dimming, compatible with RC and RL dimmer.

7, Protection: Short circuit / Over voltage / Over temperature.

8, Dimming range: 10%-100%

Specifications

Input	Input voltage	220-240Vac, 50/60Hz
	Power factor (PF)	≥0.9(@ 240Vac input, full load and without dimmer)
	Efficiency	≥82%(@ 240Vac input, full load and without dimmer)
	No-load power	≤1.5W
Output	Output Voltage	12V DC
	Output Current	3.3A max.
	Voltage accuracy	±5%
	Rated power	40W Max.
Dimming	Dimming mode	Trailing edge and Leading edge dimming
Dimming	Dimming range	10%-100%
Environment	Working temperature	-25℃~50℃
Environment	Storage temperature	-40℃~80℃
Safety and EMC	Insulation class	Class II, SELV
	Withstand voltage	Input-Output: 3.7kVac/5mA/1min
	EMC	Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547
	Safety	Compliance to EN61347-1, EN61347-2-13
Protection	Short circuit	Protection mode: Auto recovery
Protection	Over temperature	Protection mode: Auto recovery
Others	Dimension	202x58x29.85mm
	Enclosure	Plastic, white
	IP rating	IP20
	Connection	Input: 4-hole press-in type terminal(L, L, N, N) Output: Screw terminal block (LED +, LED -)
	Life time	30,000h
	Certification	CE
