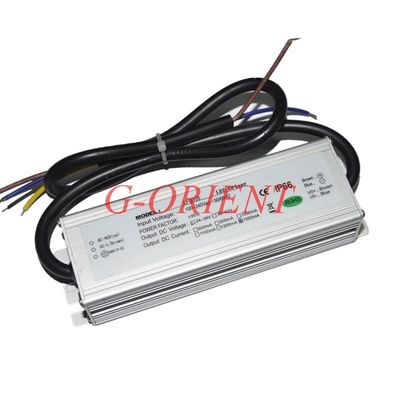

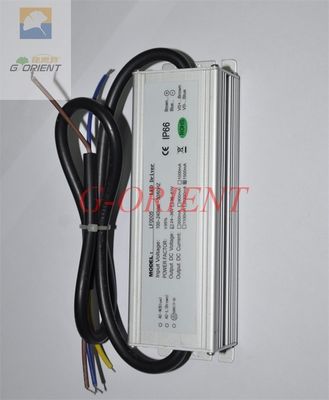

LED Tunnel light Waterproof Led Power Supply / constant current led driver

LED Tunnel light Waterproof Led Power Supply / constant current led driver

  • LED Tunnel light Waterproof Led Power Supply / constant current led driver
  • LED Tunnel light Waterproof Led Power Supply / constant current led driver
  • LED Tunnel light Waterproof Led Power Supply / constant current led driver
LED Tunnel light Waterproof Led Power Supply / constant current led driver
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: G-ORIENT
प्रमाणन: CE, ROHS, SAA, FCC, TUV, etc.,
Model Number: GDW50-AE
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 10pcs
मूल्य: Negotiable
Packaging Details: 40PCS/CTN, GW:8.5KGS, Carton Size: 31 x 19 x 17.5CM
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 60,000set/mon
संपर्क करें
विस्तृत उत्पाद विवरण
Input Voltage: 85-277VAC Output Voltage: 12-36VDC
Power Rated: 50W Efficiency: 0.88 Max
Protecion Grade: IP66 PFC: >0.95
प्रमाणन: CE,ROHS,FCC,SAA,TUV, etc., Case: Aluminum
हाई लाइट:

outdoor led power supply

,

constant current led power supply

LED Tunnel light Waterproof Led Power Supply / constant current led driver

Features:

* Input Voltage: AC85-277V

* Output: Costant Current
* High efficiency, High reliability, Low cost
* Protections: Short circuit/Over load/Over voltage/High temperature
* Waterproof grade: IP66, water proof and dust proof
* Working Frequency: 65 KHz
* Suitable for LED lighting, Like LED Downlight, Flood Light, LED strip light, LED Wall Wash Light, etc.,
* Aluminum Case



Competitive Advantages:

* PFC>0.95

* High efficiency up to 88%

* 3 years warranty

* CE / ROHS / FCC/SAA approval

* Customized is available

* IP66


Specification:

Model

GDW50-AE-12

GDW50-AE-24

GDW50-AE-36

------







output

DC voltage

12V

24V

36V

------

Voltage tolerance

±1%

±1%

±1%

------

Rated current

4.2A

2.1A

1.4A

------

Current range

0~4.2A

0~2.1A

0~1.4A

------

Rated power

50.4W

50.4W

50.4W

------

Ripple&noise

100mvp-p

150mvp-p

180mvp-p

------





input

Voltage range

AC85-277V,235~373VDC

Frequency

47~63HZ

AC current

0.5A/230VAC

Efficiency

84%

85%

88%

------

Inrush current

Cold start current 35A/230VAC

Leakage current

<1mA/240VAC

protection

Over load

Rated output power 115%~150%start over load protection

Protection type: hiccup mode,auto-recovery after fault condition is removed

Over voltage

15.6~17.8V

30.6~33.2V

42.6~44.2V

  -------

Protection type: hiccup mode,auto-recovery after fault condition is removed

Over temperature

Shell temp85°C,start over temperature protection

Protection mode: cutoff output,auto-recovery after temperature become normal

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storage temp.humidity

-20°C~+85°C,10%~95%RH non condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60minutes,each axes

safety

Withstand voltage

I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC

Fits

tandard

Safety standard

Fit UL1012,IP67 protect level

EMC standard

Fit EN55022,CLASSA

Others

Dimension

139*42*29mm (L*W*H)

Weight/packing

0.21kg/30pcs/10..5kg





Application:
* Widely used in LED Lighting, LED Street light, LED flood Light, LED Tunnel light, Wall Wahs LED light, etc.,
* IP66 waterproof and dustproof, can operate in hard conditions and enviroment


LED Tunnel light Waterproof Led Power Supply / constant current led driver 0
