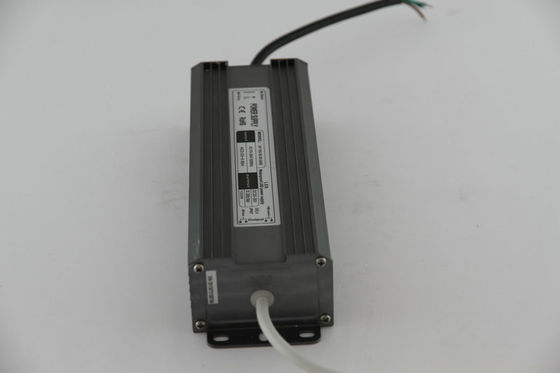

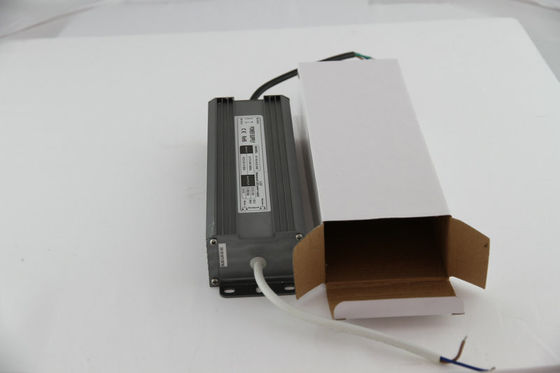

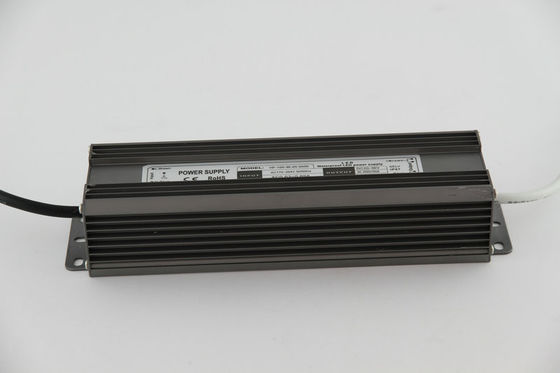

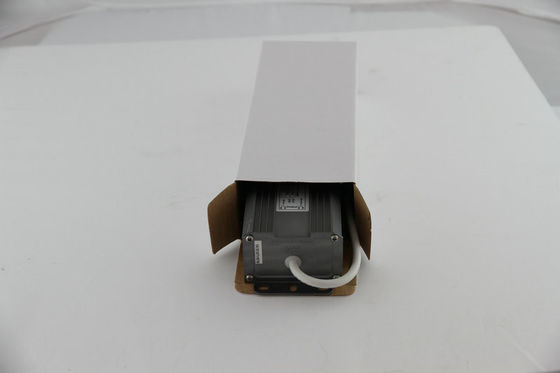

100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

उत्पाद विवरण:

Place of Origin:	China
ब्रांड नाम:	DongDaHua
प्रमाणन:	CE RoHS
Model Number:	HF-100-36-20-3A00

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	10
मूल्य:	/
Packaging Details:	as per your request
Delivery Time:	3-7 days on averange
Payment Terms:	TT;Paypal
Supply Ability:	3000pcs/Day

संपर्क करें

विस्तृत उत्पाद विवरण

Product Name:	Constant Current LED Driver	Input Frequency Range:	47~60Hz
Output Dc Voltage:	20~36V	Output Rated Current:	3200mA
Output Rated Power:	100W	Protections:	Short circuit/OLP/OVP
हाई लाइट:	constant current Source led driver , constant current led drivers

100W 3200mA Constant Current LED Driver with CE RohS

Features:

Universal AC input/Full range
Protections: Short circuit/OLP/OVP
Meet EMC standards
100% full load burn-in test
High efficiency,long life and high reliability
IP67 design for indoor and outdoor

100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

Specifications:

Model		HF-100-36-20-3A00
Output	Dc Voltage	20~36V±5%
	Rated Current	3200mA
	Rated Power	100W
	Ripple&Noise(Max)	200mV
	Current Tolerance	±20mA
	Setup,Rise Time	100ms/220VAC
	Hold Up Time(Typ.)
Input	Voltage Range	170~250VAC
	Frequency Range	47~60Hz
	Power Factor(Typ)	PF>0.6/220VAC
	Efficiency(Typ)	83%
	Ac Current(Typ)	0.63A/235V
	Inrush Current(Typ)	Cold-start current 3.2A/235V
Protection	Short Circuit	Protection type:recovers automatically after fault conditions is removed
	Overlaod	Overload protection@145~160%above peak rating
	Over Temperature	protection typer:shut down o/p voltage.re-power on to recover
Environment	Working Temp	-30~ +60℃(Refer to output load derating curve)
	Working Humidity	20~90%RH no-condensing (Waterproof)
	Storage Temp Humidity	-40~ +80℃,10~90%RH
Safety&EMC	Safety Standards	CE Mark(LVD),IP67
	Withstand Voltage	I/P-O/P:1.5KVAC IP-GND:1.5KVAC
	Emc Test Standards	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 EN 61347-1:2008 EN 61347-2-13:2006
NOTE	1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
	3.Tolerance:includes set up tolerance,line regulation and load regulation.

Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
