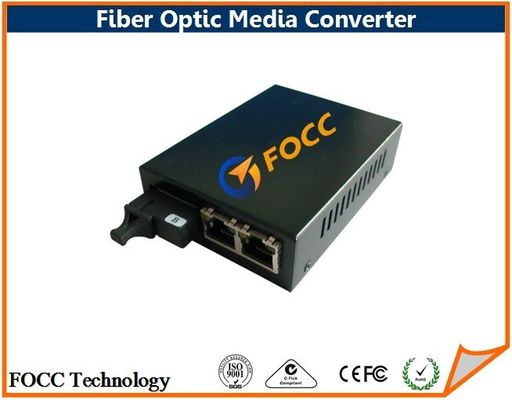

10/100M WDM BIDI Single Fiber Fast Ethernet Media Converter SC Connector 20km

10/100M WDM BIDI Single Fiber Fast Ethernet Media Converter SC Connector 20km

  • 10/100M WDM BIDI Single Fiber Fast Ethernet Media Converter SC Connector 20km
10/100M WDM BIDI Single Fiber Fast Ethernet Media Converter SC Connector 20km
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: FOCC
प्रमाणन: ISO9001; TUV; CE; FCC; CAS; UL and RoHS
Model Number: FOCC - FM004
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 10 Pieces
Packaging Details: Packed with Anti - static Bag in a Box ( Default Customer Options ); Specific Labels Requirement Available
Delivery Time: Delivery Time 5 - 7 Working Days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 8500 Pieces Of Capacity Per Month
संपर्क करें
विस्तृत उत्पाद विवरण
Color: Black Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX
TP Connection: RJ-45; Cat 3, 4, 5 UTP Fiber Connection: ST / SC / FC
Fiber Mode: Multimode; Singlemode Wave Length: 1310nm / 1550nm
हाई लाइट:

ethernet media converter

,

optical fiber media converter



10/100M WDM BIDI Single Fiber Fast Ethernet Media Converter SC Connector 20km





This kind of 10/100Base Single Fiber Fast Media Converter can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX). It could extend traditional 10/100M Fast Ethernet to the distance of 80km through single optical fiber link. Its performance is stable and reliable, in line with the Ethernet design standards, and has anti-lightning protective measures. It must be used in couples. It is the campus broadband network, broadcasting network and intelligent broadband residential broadband fiber-to-floor fiber to the home of the best applications.





Features



Data rate: 10/100M;
UTP port supports: MDI / MDI-X auto crossover;
Optical interfaces: SC, ST or FC; single mode;
Supporting 1600 Byte packet;
Wavelength: 1310nm / 1550nm;
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction;
Converter working mode could be chosen: Store and forward switch mode, modified cut-through switch mode, or Converter mode;
Stand alone or card type can be chosen;
Indicator function of link fault (LFP): When optical fiber is at fault, the converter could stop all the link;
To provide external DC power supply and built-in power supply in two forms.





Application



Operating standards: IEEE802. 3u, 10/100Base-TX and 100Base-FX;
MAC address table: 1K;
Data buffer: 128K;
UTP Connector: RJ-45 10/100Mbps;

Fiber Connector: SC 100Mbps;
UTP Cable: Cat. 5 UTP ( the max distance up to 100m );
Fiber ( Single mode ) Cable: 8. 3 / 125, 8. 7 / 125, 9 / 125, 10 / 125μm ( the max distance up to 90km );
Full Duplex: Supporting standard IEEE802. 3x;
Half Duplex: Back pressure;
Working temperature: 0 ~ 50℃;
Storage temperature: -20 ~ 70℃;
Humidity: 5% ~ 90% ( noncondensing ).





Specification



Manufacturer

FOCC

Part No.

FOCC - FM004

Standard

IEEE802.3 10BASE - T, IEEE802.3u 100BASE - TX/FX

Data Rate

10/100M

Data Buffer 128K
UTP Connector RJ-45

Fiber Connection

ST / SC / FC

Fiber Mode

Multimode; Singlemode

Wave Length

1310nm / 1550nm

Environment

Working Temperature: -40 ~ 80,
Storage Temperature: -20 ~ 70

Humidity

5% ~ 90%





10/100M WDM BIDI Single Fiber Fast Ethernet Media Converter SC Connector 20km 0





Technical Specifications





Desk Type Dual - Optical Singlemode / Multimode Media Converter

Part No.

Wavelength

(nm)

Optical

Port

Electric

Port

Optical

Power

(dBm)

Receiving

Sensitivity

(dBm)

Transmission

Range (km)

FOCC-DME281-05

850nm

SC

RJ - 45

-8 ~ -3

≤ -19

0.55km

FOCC-DME231-2

1310nm

SC

RJ - 45

-8 ~ -3

≤ -20

2 km

FOCC-DSE231-10

1310 nm

SC

RJ - 45

-8 ~ -3

≤ -24

10 km

FOCC-DSE231-20

1310 nm

SC

RJ - 45

-8 ~ -3

≤ -24

20 km

FOCC-DSE231-40

1310 nm

SC

RJ - 45

-5 ~ 0

≤ -24

40 km

FOCC-DSE251-60

1550 nm

SC

RJ - 45

-5 ~ 0

≤ -24

60 km





Desk Type Single - Optical Two - Way Media Converter

Part No.

Wavelength

(nm)

Optical

Port

Electric

Port

Optical

Power

(dBm)

Receiving

Sensitivity

(dBm)

Transmission

Range (km)

FOCC-

SSE231-10

1310nm

SC

RJ - 45

-8 ~ -3

≤ -24

10 km

FOCC-

SSE251-10

1310nm

SC

RJ - 45

-8 ~ -3

≤ -24

10 km

FOCC-SSE231-20

1310 nm

SC

RJ - 45

-8 ~ -3

≤ -24

20 km

FOCC-SSE251-20

1310 nm

SC

RJ - 45

-8 ~ -3

≤ -24

20 km

FOCC-SSE231-40

1310 nm

SC

RJ - 45

-5 ~ 0

≤ -24

40 km

FOCC-

SSE251-40

1550 nm

SC

RJ - 45

-5 ~ 0

≤ -24

40 km





Bulk For Packed





10/100M WDM BIDI Single Fiber Fast Ethernet Media Converter SC Connector 20km 1





Shipping Method As Follow or Customized Requirements





10/100M WDM BIDI Single Fiber Fast Ethernet Media Converter SC Connector 20km 2





Quality Assurance





MTBF > 65,000 hours;
Replacement within one year and non-charge repair within three years guaranteed.





Notes:





Prices and specifications are subject to change without notice, FOCC is not responsible for typographical or photographic errors. For detailed inquiry please contact our sales team at focc@fiberfocc.com.
