Place of Origin: | China |
ब्रांड नाम: | G-ORIENT |
प्रमाणन: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHP200-4.5-A |
Minimum Order Quantity: | 10pcs |
---|---|
मूल्य: | negotiable |
Packaging Details: | 20pcs/16Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
Size: | 212*58*29mm | Application: | LED TV |
---|---|---|---|
Output power: | 180W | Output: | 4.5V DC / 40A |
Input: | 100-240V AC | High efficiency: | 90% |
Power factor: | >0.95 | Case material: | Metal, aluminium |
हाई लाइट: | ac to dc power converter,ac to dc converter |

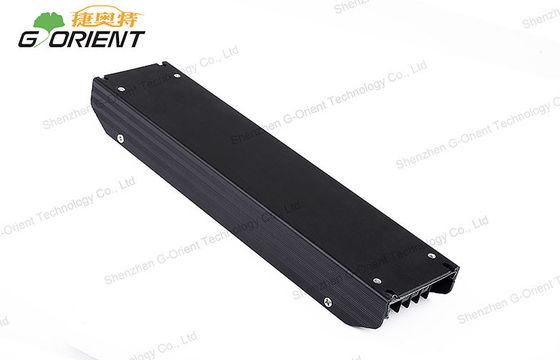

Ultra - thin Advisement player 180W AC DC Converter With over-current
Applications:
* Electrical equipment, Instrumentation;
* Digital and electronic products;
* Advisement player
* LED display,LCD TV, LED TV
* Display screen,LED video wall
* Communications and security products.
Features:
* Synchronous rectification,high power factor>0.95
* High efficiency up to 90%
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty
Specifications:
Switching power supply |
NHP200-4.5-A |
|
OUTPUT |
DC Voltage |
4.5V |
Current Range |
0~40A |
|
Rated Current |
40A |
|
Rated Power |
180W |
|
Ripple & Noise(max.) |
<200mVp-p |
|
Regulation |
≦+/-3% |
|
Leakage current |
≦3.5mA |
|
INPUT |
Voltage Range |
100-240V AC |
Frequency Range |
47-63Hz |
|
Efficiency(Typ.) |
90% |
|
Environment |
Storage Temperature |
-40 ~ +85℃ |
Operaing Temperature |
-40 ~ +80℃ |
|
Relative Humidity |
10%-95% |
|
Cooling |
Natural convection |
|
Safety |
Safety standards |
CE |
Withstand Voltage |
Input-output withstand vol. |
3000Vac/10mA/1min |
Input-FG withstand vol. |
1500Vac/10mA/1min |
|
Output-FG withstand vol. |
500Vac/10mA/1min |
|
Others |
Dimension |
212*58*29mm (L*W*H) |
Packing |
|
Competitive Advantage:
* Ultra-thin 29mm
* High efficiency up to 90%
* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
* Synchronous rectification+PFC
* Ultra-low start up temperature-40℃
* CE / ROHS / FCC approval
Company Advantage:
* Short lead time
* Professional R&D team
* Cheap wholesale price
* High quality products
