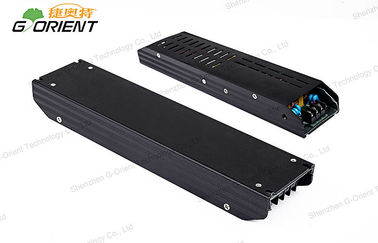

Wide Range Input 100 - 240V AC DC Converter 252 Watt for LED display

Wide Range Input 100 - 240V AC DC Converter 252 Watt for LED display

  • Wide Range Input 100 - 240V AC DC Converter 252 Watt for  LED display
Wide Range Input 100 - 240V AC DC Converter 252 Watt for  LED display
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: G-ORIENT
प्रमाणन: ISO9001 / CE / ROHS / FCC
Model Number: NHP300-4.2-A
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 10pcs
मूल्य: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
संपर्क करें
विस्तृत उत्पाद विवरण
Input: 100-240V AC Product Name: AC DC Converter
Operating temperature: -40℃ ~ +60℃ Output power: 252W
Output: 4.2V DC / 60A IP Grade: IP20
Power factor: >0.95 High efficiency: 90%
हाई लाइट:

ac to dc power converter

,

ac to dc converter


Wide Range Input 100 - 240V AC DC Converter 252 Watt for  LED display


Features:
* High efficiency up to 90%
* Ultra-low start up temperature -40℃
* 2 years warranty
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Synchronous rectification,high power factor>0.95


Specifications:

Switching power supply

 NHP300-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~60A

Rated Current

 60A

Rated Power

 252W

Ripple & Noise(max.)

 <200mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 242*58*29mm (L*W*H)

Packing






Competitive Advantage:
* Ultra-low start up temperature-40℃
* Ultra-thin 29mm
* Output over-current,short-circuit,over-load,over-voltage protection
* High efficiency up to 90%
* Low output ripple and noise
* Synchronous rectification+PFC


Applications:
* LED display,LCD TV, LED TV
* Display screen,LED video wall
* Electrical equipment, Instrumentation;
 * Communications and security products.
* Digital and electronic products;
* Advisement player


Company Advantage:
* Professional R&D team
* Standardized production process
* Best after sale service
* High quality products
* Short lead time
