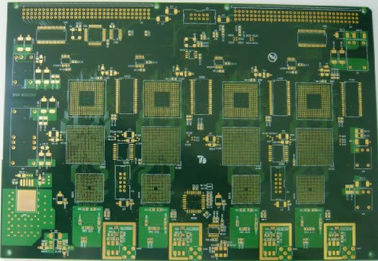

Homemade Double Sided PCB Making Power Supply , FR4 PCB 1.5 OZ Copper Glass Epoxy

Homemade Double Sided PCB Making Power Supply , FR4 PCB 1.5 OZ Copper Glass Epoxy

  • Homemade Double Sided PCB Making Power Supply , FR4 PCB 1.5 OZ Copper Glass Epoxy
Homemade Double Sided PCB Making Power Supply , FR4 PCB 1.5 OZ Copper Glass Epoxy
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: HD-PCB
प्रमाणन: UL,ISO9001,TS16949.
Model Number: Double Sided PCB-2
भुगतान & नौवहन नियमों:
Minimum Order Quantity: No MOQ
मूल्य: Negotiation
Packaging Details: Packed in antistatic bag
संपर्क करें
विस्तृत उत्पाद विवरण
हाई लाइट:

double sided circuit board

,

double layer pcb



Homemade Double Sided PCB Making Power Supply , FR4 PCB 1.5 OZ Copper Glass Epoxy





Quick Details



PCB Type:

Quick Turn PCB Prototypes

Layer :

2 layer

Min .Line Width/Space:

3mil/3mil

Min. Via Diameter:

0.3mm

Finish Thickness:

1.6mm

Surface Finish:

HASL

Size:

80*100MM

Material:

FR4-1.6MM

Color:

Green

Application:

Controller





Description



    We are one-stop printed circuit board manufacturer , providing PCB fabrication services for single, double or multi-layer PCBs in low volume and high-volume production amounts with a wide range of materials and technology options.
    Leveraging our design and assembly services in a turnkey production system, we can provide low cost PCB manufacturing with the highest quality. Using a variety of inspection methodologies to ensure the functionality of the final product. We offer Full Spec, small quantity printed circuit boards and Custom Spec quick turn PCBs. In addition, we are the premier provider of printed circuit boards to the Military/Aerospace/Defense/Medical and Commercial Industries.







Technical Capabilities



Number of layers

1, 2, 4 or 6, up  to 36 layers

Order Quantity

1 to 500,000

Board shape

Rectangular, round, slots, cutouts, complex, irregular

Board type

Rigid, flexible, rigid-flexible

Board material

FR4 glass epoxy, FR4 High Tg, RoHS compliant; Aluminum, Rogers, etc.

Board cutting

Shear, V-score, tab-routed

Board thickness

Flex, 0.2 ~ 6.0 mm, 0.01 ~ 0.25″

Copper weight

1.0, 1.5, 2.0 Oz

Solder mask

Double-sided green LPI, Also support red, white, yellow, blue, black

Silk screen

Double-sided or single-sided in white, yellow, black, or negative

Silk screen min line width

0.006″ or 0.15mm

Max board dimensions

45 x 45″ or 114 x 114 cm

Min trace/gap

0.004”, 0.1mm, or 4 mils

Min drill hole diameter

0.006”, 0.15mm, or 6 mils

Surface finish

HASL,Nickle, Imm Gold,Imm Tin,Imm Silver, OSP etc.

Board thickness tolerance

±10%

Copper weight tolerance

±0.25 oz

Minimal slot width

0.12”, 3.0 mm, or 120 mils

V-score depth

20-25% of board thickness

Plated through holes

Yes

Sink holes

Yes

Design file format

Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG







PCB Production Flow Chart



Homemade Double Sided PCB Making Power Supply , FR4 PCB 1.5 OZ Copper Glass Epoxy 0



Testing Procedures



We perform multiple quality assurance procedures before shipping out any PCB board. These include:

  • Visual Inspection
  • Flying probe
  • Bed of nails
  • Impedance control
  • Solder-ability detection
  • Digital metallograghic microscope
  • AOI (Automated Optical Inspection)



Quick turn lead times



For PCB production, we can provide 2 to 7 days turn around times. For multilayer PCBs, the fastest  turnaround time depends on the number of layers and quantity.



Service Guarantee



We make sure to serve each customer professionally, truthfully and friendly to the best of our ability.   We will gladly re-work your project if your project isn’t 100% satisfactory.





Get a quick quote now



By sending in a bill of material, gerber files including assembly drawing and we will have a quotation back to you within hours. With Shenzhen hengda there is never a hidden cost and our prices are very competitive and reasonable.
