Place of Origin: | Shenzhen, China |
ब्रांड नाम: | SCED |
प्रमाणन: | UL, CE |
Model Number: | TR-3N |
Minimum Order Quantity: | 500 |
---|---|
मूल्य: | Factory Price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-20 working days |
Payment Terms: | T/T |
Supply Ability: | 1KK poles each monthly |
Applications: | Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev | Color: | Grey |
---|---|---|---|
Deck: | Single Deck | Type: | Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks |
Width: | 5.2mm | Wire Range: | 28-12 |
हाई लाइट: | din rail mount terminal blocks,din rail terminals blocks |

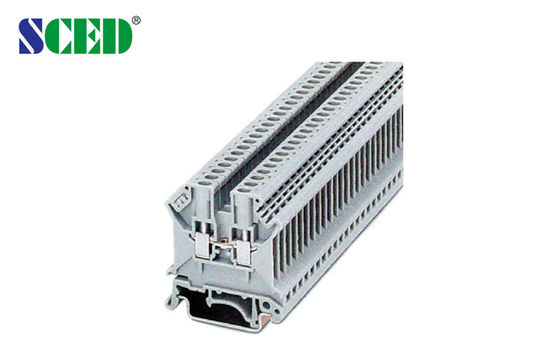

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
Detailed product Description:
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
How to order:
Parameter and Drawing Specifications:
Description Color |
Type |
Terminal Grey |
TR-3N |
End Cover Grey
|
D-TR-3/16 |
Fixed Bridge
|
FBI 10-5 Imax: 30A |
Insertion Bridge
|
EBL 10-5 Imax: 24A |
Separating Plate
|
TS-K |
Partition Plate
|
ATP-TR |
Zack Strip White |
ZB5 |
Screwdriver |
SZS0.6×3.5 |
Rail Material |
aluminum |
Dimensions mm |
5.2/42.5/2 |
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52 |
Screw / Torque Nm |
M3 / 0.6-0.8 |
Stripping Length mm |
8 |
IEC Technical Data |
|
Max. Load Current / Cross Section A / mm2 |
32 / 4 |
Rated Surge Voltage / Contamination Class KV / - |
8 / 3 |
Surge Voltage Category |
Ⅲ |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
