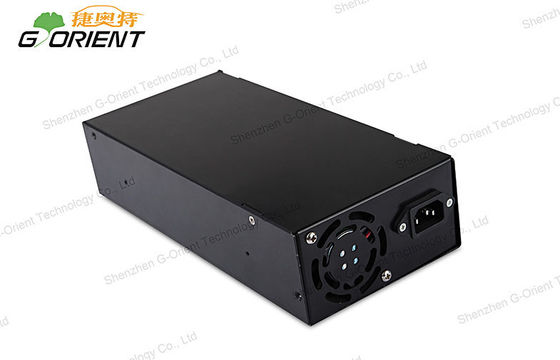

Street lamps Single Output Switching Power Supply / Led Lighting Power Supply

उत्पाद विवरण:

Place of Origin:	China
ब्रांड नाम:	G-ORIENT
प्रमाणन:	ISO9001 / CE / ROHS / FCC
Model Number:	NHI600-12

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	10pcs
मूल्य:	negotiable
Packaging Details:	20pcs/ CARTONS
Delivery Time:	10 - 15 working days after received your payment
Payment Terms:	T/T, Paypal, Western Union, L/C
Supply Ability:	50,000pcs per month

संपर्क करें

विस्तृत उत्पाद विवरण

Output power:	600W	Output:	12V DC / 50A
High efficienc:	81%-85%	IP Grade:	IP20
ब्रांड नाम:	G-Orient	Input:	200-240V AC
Size:	26014065mm	Operating temperature:	-40℃ ~ +60℃
हाई लाइट:	led power supplies , adjustable power supply

Street lamps Single Output Switching Power Supply / Led Lighting Power Supply

Competitive Advantage:

* CE / ROHS / FCC approval
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Small size,ultra-light and easy to install

* Ultra-low start up temp.(- 20℃)
* High efficiency up to 85%
* 2-3 years warranty

Applications:
* Products can be used to street lamps, lawn lamps, sunlight lamps, LED lighting
* Adornment: LED lamp, LED luminaire , LED strips, LED screens, advertisement screens
* Industrial electrical products, machinery and electrical equipment, security system, air purifier

Specifications:

Switching power supply		NHI600-12
OUTPUT	DC Voltage	12V
	Current Range	0~50A
	Rated Current	50A
	Rated Power	600W
	Ripple & Noise(max.)	<150mVp-p
	Voltage ADJ.Range	10~13.5V
	Voltage Tolerance	+/- 1.0%
	Line Regulation	+/- 0.5%
	Load Regulation	+/- 0.5%
	Setup,Rise Time	1000ms,50ms/230VAC
	Hold up time	20ms/230VAC
INPUT	Voltage Range	200-240VAC
	Frequency Range	47-63Hz
	Efficiency(Typ.)	83-88%
	AC Current	7.5A/230VAC
	Inrush Current(max.)	60A/230VAC
	Leakage Current	< 2.0mA /240VAC
Protection	Over Load	105 ~ 125% rated output power
	Over Load	Protection type: Constant current limiting,recovers automatically after fault condition is removed
	Over Voltage	13.8~ 16.2V
	Over Voltage	Protection type: Shut down O/P voltage,re-power on to recover
	Over Temperature	85℃ +/- 5℃
	Over Temperature	Protection type: Shut down O/P voltage,recovers automatically after temperature goes down

Environment	Working Temp.	-20 ~ +60℃ (Refer to output load derating curve)
	Working Humidity	20 ~ 90% RH, non-condensing
	Storage Temp., Humidity	-40 ~ +85℃, 10 ~ 95% RH
	Temp.Coefficient	+/-0.05%/℃ (0 ~ 50℃)
	Vibration	10 ~ 500Hz, 2G 10min./1 cycle,60min. Each along X, Y, Z axes
Safety	Safety standards	UL60950-1 approved
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH
Others	MTBF	>197K hrs min. MIL-HDBK-217F(25℃)
	Dimension	26014065mm (LWH)
	Packing	2.1kg; 10pcs/2Kgs
Note	1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.
	3. Tolerance: includes set up tolerance,line regulation and load regulation.

Features:
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Built-in constant current limiting circuit
* Low cost,high reliability
* 2 years warranty

Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
