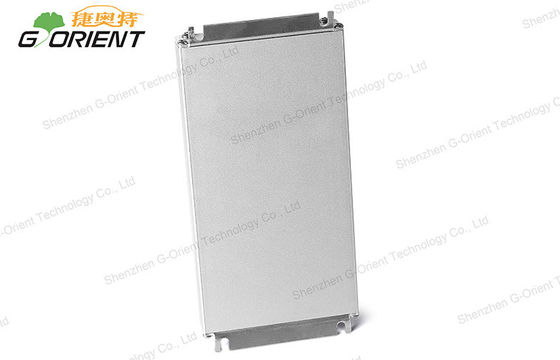

Single Output High Power Switching Power Supply Universal 200W for Car LED Display

Single Output High Power Switching Power Supply Universal 200W for Car LED Display

  • Single Output  High Power Switching Power Supply Universal 200W for Car LED Display
Single Output  High Power Switching Power Supply Universal 200W for Car LED Display
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: G-ORIENT
प्रमाणन: ISO9001 / CE / ROHS / FCC
Model Number: NHD200-5-E
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 10pcs
मूल्य: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 50,000pcs per month
संपर्क करें
विस्तृत उत्पाद विवरण
Size: 168*80*18mm High efficiency: 94%
Application: On-board screen, Taxi LED sign Standard: CE / ROHS / FCC
Output power: 200W Input: 9-36V DC
Output: 5V DC / 40A Operating temperature: -30℃ ~ +60℃
हाई लाइट:

switching regulator power supply

,

switched mode power supply



Single Output  High Power Switching Power Supply Universal 200W for Car LED Display


Competitive Advantage:
* The two level output over voltage protection
* Output over-current,short-circuit,over-load,over-voltage protection
* Ultra-thin 18mm
* High efficiency up to 94%
* CE / ROHS / FCC approval* Low output ripple and noise


Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.


Specifications:

Switching power supply

 NHD-200-5E

 OUTPUT

DC Voltage

 5V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 200W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <25A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -25 ~ +65℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 168*80*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs



Features:
* Input reverse connect protection
* High efficiency 94% & small size
* Low output ripple and noise
* Through the EMC certification
* Aluminum metal shell,natural cooling
* 2 years warranty
* To prevent car screen flower screen, the splash screen and two horizontal line design





Company Advantage:
1. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
2. Your inquiry related to our products or price will be replied in 24hrs
3. Distributorship are offered for your unique design and some our current models
4. OEM&ODM,any your customized lightings we can help you to design and put into product
5. Protection of your sales area,ideas of design and all your private information
