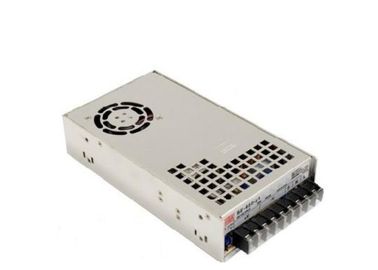

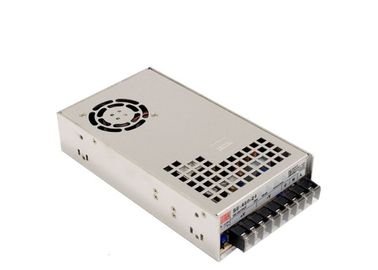

12V / 24V SE-450 AC DC LED Power Supply Voltage LED Driver

12V / 24V SE-450 AC DC LED Power Supply Voltage LED Driver

  • 12V / 24V SE-450 AC DC LED Power Supply  Voltage LED Driver
  • 12V / 24V SE-450 AC DC LED Power Supply  Voltage LED Driver
12V / 24V SE-450 AC DC LED Power Supply  Voltage LED Driver
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: Meanwell
प्रमाणन: CE,ROHS, TUV, UL
Model Number: SE-450 Single Output Switching Power Supply
भुगतान & नौवहन नियमों:
Minimum Order Quantity: Negotiable
मूल्य: Negotiable
Packaging Details: Export Standard Packaging
Delivery Time: 5-7 work days after receiving deposit
Payment Terms: Ex works
Supply Ability: 30000pcs/month
संपर्क करें
विस्तृत उत्पाद विवरण
DIMENSION: 225*124*50mm (L*W*H) Protections: Short circuit / Overload / Over voltage / Over temperature
PACKING: 1.25Kg;12PCS/16Kg/1CUFT Over voltage protection: 115%~145%
EMC EMISSION: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 DC Voltage: 3.3V, 5V, 12V, 15V, 24V, 36V, 48V
Overload protection: 105%~150% Shut down o/p voltage, repower on to recover Warranty: 2 Years
हाई लाइट:

high power led power supply

,

LED Light Power Supply



Meanwell SE-450 AC DC LED Power Supply 12V 24V Constant Voltage LED Driver​​​

Enclosed SE Series 100w-450w Miniature Features:
1. AC input selectable by switch
2. Withstand 300VAC surge input for 5 seconds (SE-200/350)
3. Protections: Short circuit / Overload / Over voltage / Over temperature (except for SE-100)
4. Forced air cooling by built-in DC fan (SE-350/450)
5. Built-in fan ON/OFF control (SE-350)
6. Built-in constant current limiting circuit (SE-200/350)
7. Withstand 5G vibration test (SE-200/350)
8. Built-in remote sense function (SE-450)
9. 100% full load burn-in test
10. LED indicator for power on
11. 2 years warranty


SE Series SE-350 Single Output Switching Power Supply Features:
1. AC input active surge current limiting
2. AC input range selected by switch
3. Protections: Short circuit / Overload / Over voltage / Over temperature.
4. Forced air cooling by built-in DC ball bearing fan
5. Built-in remote sense function
6. LED indicator for power on
7. UL approved
9. 2 years warranty


Enclosed Switching Power Supplies
SE Series:
Single Output Switching Power Supply: SE-100, SE-200, SE-350, SE-450, SE-600, SE-1000, SE-1500


Quick Details of 450w Single Output LED Switching Power Supply:

450W-Single Output
Model No. Output Tol. R&N Effi.
SE-450-3.3 3.3V, 0~75A ±3% 200mV 74%
SE-450-5 5V, 0~75A ±3% 200mV 78%
SE-450-12 12V, 0~37.5A ±1% 200mV 83%
SE-450-15 15V, 0~30A ±1% 200mV 84%
SE-450-24 24V, 0~18.8A ±1.5% 200mV 86%
SE-450-36 36V, 0~12.5A ±1% 200mV 86%
SE-450-48 48V, 0~9.4A ±1% 200mV 88%



SE Series 100w to 450w Specfications:



Model No. SE-100 SE-200 SE-350 SE-450

AC input

voltage range

  115/230VAC by switch

AC inrush

current (max.)

  Cold start,
36A at 230VAC
Cold start,
55A at 230VAC
Cold start,
60A at 230VAC
Cold start,
55A at 230VAC

DC adjustment

 range



-5%~+10% rated

output voltage

±10% rated output voltage

Overload

protection

Range 110%~150% 105%~150% 105%~135% 105%~150%
Type Hiccup mode, auto-recovery

Constant current limiting,

 auto-recovery

Shut down o/p

voltage, repower

on to recover

Over voltage

protection

  115%~135% 115%~145%

Withstand

voltage

  I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC

Working

temperature

  -20~+60°C -20~+60°C -20~+60°C

-10~+60°C (refer

to output derating

 curve)

Safety

standards

  UL60950-1, GB4943(SE-100 only) approved

EMC

standards



EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,

GB9254 for SE-100 only

Connection

7P/9.5mm pitch terminal block 9P/9.5mm pitch terminal block

with cover 9P/11mm pitch terminal block with cover

Dimension

(LxWxH)(mm)

  159x 97x 38 215x 115x 50 225x 124x 50
Case No.   901 912E 912C 986A
Packing   30pcs/17.5kg 12pcs/12kg 12pcs/13.5kg 12pcs/16kg



NOTE:
1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.


SE-450 Series Datasheet:

12V / 24V SE-450 AC DC LED Power Supply  Voltage LED Driver 0



12V / 24V SE-450 AC DC LED Power Supply  Voltage LED Driver 1



SE Series SE-450 Models Available:
NES-450-3.3
NES-450-5
NES-450-12
NES-450-15
NES-450-24

NES-450-36

NES-450-48
