Universal Wall Mount Power Adapters , 12VDC computer power supply adapter

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	500 pcs
मूल्य:	negotiation
Packaging Details:	PE bag+white box/PE bag without white box
Delivery Time:	20 Days
Payment Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability:	8000 PCS/Day

संपर्क करें

विस्तृत उत्पाद विवरण

color:

white

jack:

right angle/straight

हाई लाइट:

portable power adapter

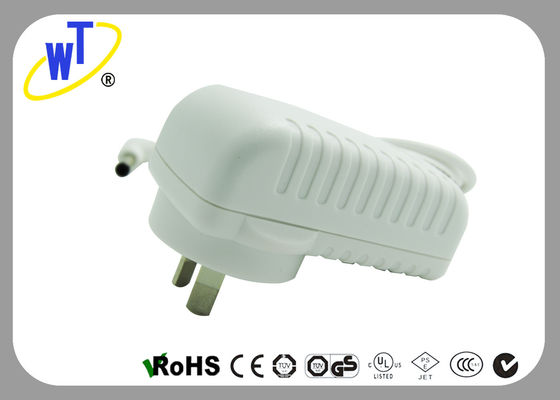

Universal Wall Mount Power Adapters , 12VDC computer power supply adapter

Quick Details:

Warranty:	12 months
Certification:	UL/CCC/SAA/ROHS
Usage:	Network Products / Sound Equipment
Packaging:	a. PE bag+ white box b. PE bag without white box
Place of Origin:	China(Mainland)
Brand Name:	WT
Model Numeber:	WT1201500
MOQ:	500 pcs
Delivery Time:	20 Days
Payment Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability:	8000 PCS/Day

Description:

1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant

Some Using Details:

Connect power supply to the supplied unit.
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
Power supply can only be installed indoors.
The power supply should be installed in a location with good airflow
Do not install power supply in locations with high humidity, dust or strong direct sunlight.
