    उत्पाद विवरण:

    Place of Origin: CHINA
    ब्रांड नाम: EMITTRON
    प्रमाणन: CE,ROHS
    Model Number: SMDA-1018-PF

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 200pcs/Carton
    Packaging Details: 1250*240*240mm 8kg 25pcs/ctn
    Delivery Time: 5-10 days
    Payment Terms: T/T,Paypal,Western Union,L/C
    Supply Ability: 100000PCS/Month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Features: high PF, high efficiency, High voltage start, Isolated power supply Application: LED Lighting
    certification: CE, RoHS Input frequency: 47Hz - 63Hz
    Input voltage: 85V - 265V AC Maximum current: 0.8A
    Output power: 10W - 18W Output voltage: 20V - 40V DC
    Power factor: 0.95 Product Name: Constant Current LED Driver

    LED Power Supply 18 Watt Constant Current LED Driver 85V - 265V AC , CE RoHS

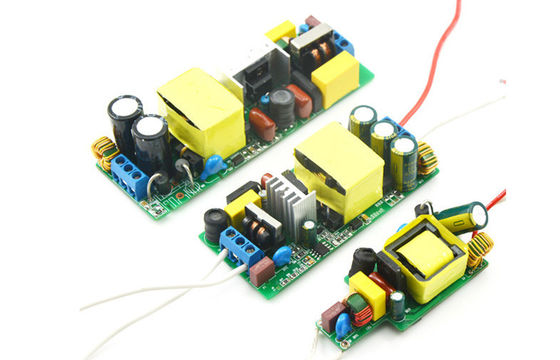

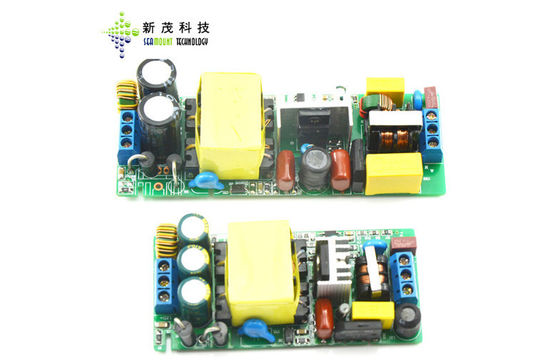

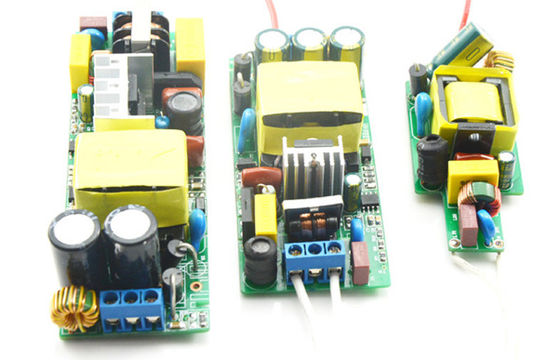

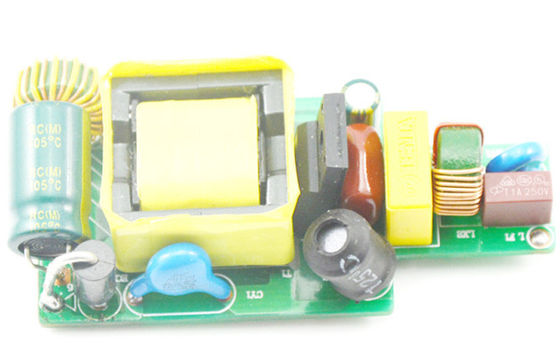

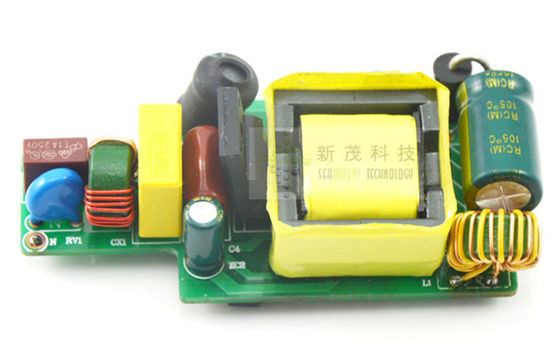

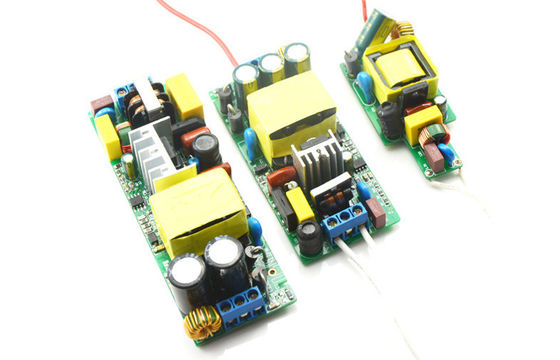

    10-18W isolation type constant current LED driver





    • Part Number: SMDA-1018-PF
    • Brand Name:SEAMOUNT
    • Product description:10-18W isolation type constant current LED driver power supply
    • Output power: 10-18W
    • Input voltage: 85 ~ 265V AC
    • Input frequency: 47 hz ~ 63 hz
    • Power factor>0.95
    • Output voltage: 20 ~ 40 VDC
    • Maximum current: 0.8 A
    • Maximum output power: 18 w
    • Conversion efficiency> 85%
    • Constant current precision:±3%
    • Ripple and noise (P - P) ≤5%
    • Temperature coefficient: ±0.2%/℃




    Product features:



    • High voltage start, no delay, no flicker
    • Low ripple, start quickly, high PF, high efficiency
    • Over temperature protection, over-voltage protection, overload protection, short circuit protection
    • Isolated power supply, safe and reliable, Two years warranty
    • CE, RoHS certification





    Electrical properties:



    Input voltage:

    85 ~ 265V AC

    Input frequency:

    47 hz ~ 63 hz

    Power factor

    >0.95

    Output voltage:

    20 ~ 40 VDC

    Maximum current:

    0.8 A

    Maximum output power:

    18 w

    Conversion efficiency

    > 85%

    Constant current precision:

    ±3%

    Ripple and noise (P - P)

    ≤5%

    Temperature coefficient:

    ±0.2%/℃



    Protection features:



    • Output no-load voltage≤60V
    • Short circuit protection
    • Over temperature protection
    • Over voltage protection
    • Overload protection


    Electromagnetic interference:



    • Conducted interference degree: EN55015, CLASS B
    • Radiated interference degree: EN55015, CLASS B


    Environmental conditions:



    • Working temperature: 10 ℃ ~ + 45 ℃ typical values (25 ℃)
    • Storage temperature: -20℃~+70℃ typical values (25 ℃)
    • Relative humidity: 5~95%
    • Atmospheric pressure: 70-106 KPa

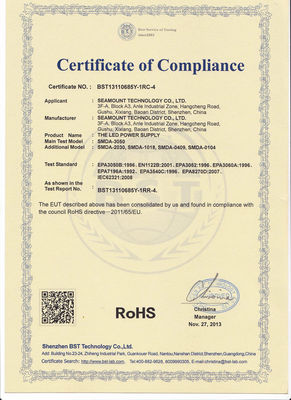

    Certification&life:

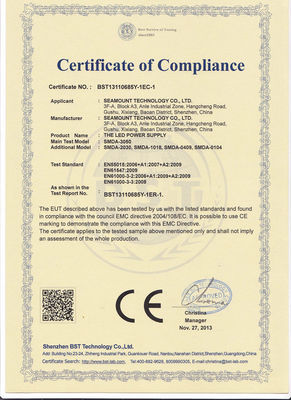

    • EMC:BST13110685Y-1EC-1

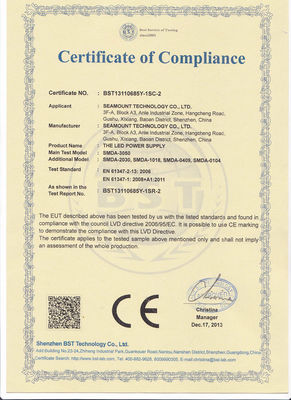

    • LVD:BST13110685Y-1SC-2
    • RoHS:BST13110685Y-1RC-4
    • Life: 50,000 hours long life design


    Product packaging/size /weight/ quantity:

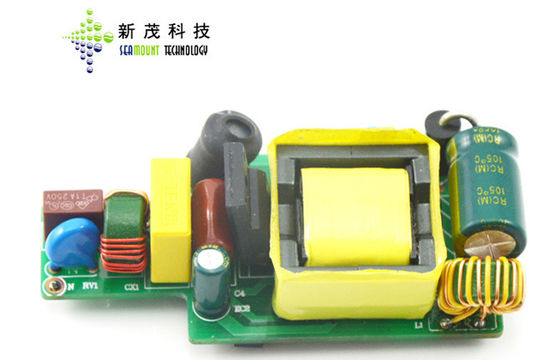

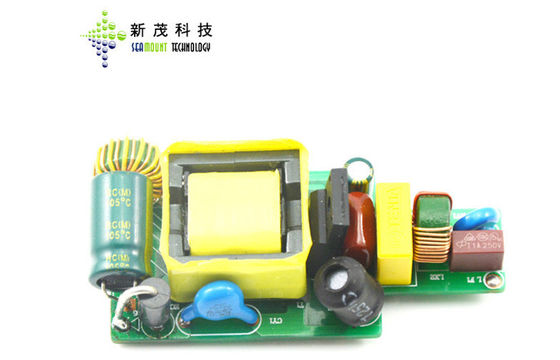

    • Driver size/weight: 30 mm * 63 mm * 23 mm

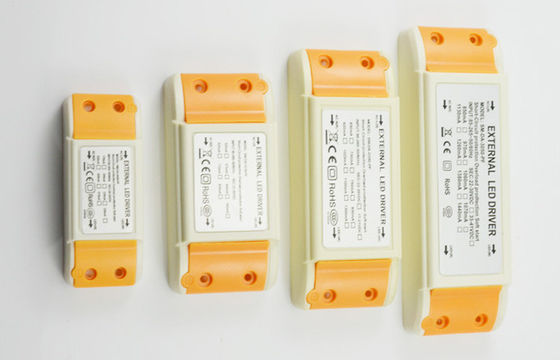

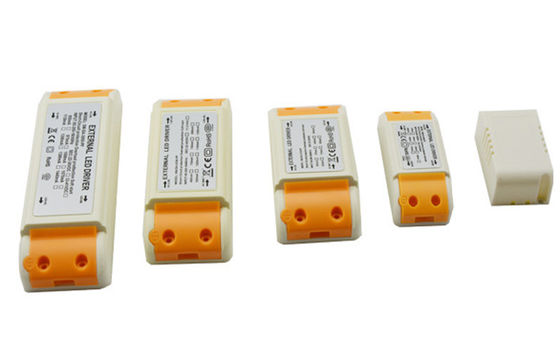

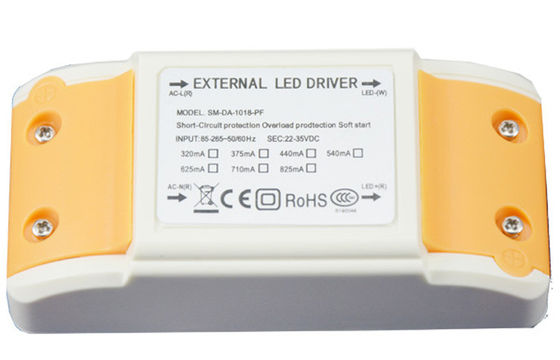

    • External driver size/weight: 45 mm * 94 mm * 28 mm
    • Driver packing size/weight/quantity:
    • External driver packing size/weight/quantity:



    Application:



    • Widely used in 10-18W LED Lighting.
