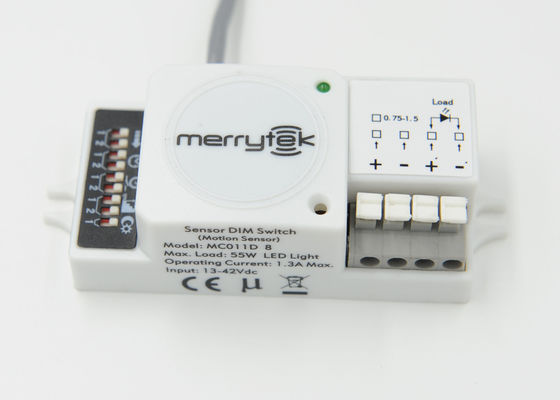

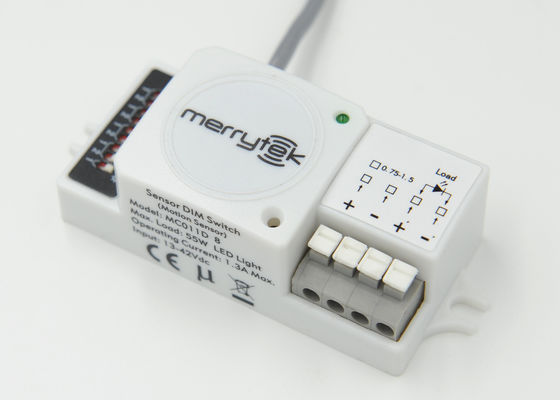

Compact Size DC Motion Sensor 5.8GHz With Constant Current Led Driver

Compact Size DC Motion Sensor 5.8GHz With Constant Current Led Driver

    • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
    • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
    • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
    • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
    • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
  • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver

    उत्पाद विवरण:

    Place of Origin: China
    ब्रांड नाम: Merrytek
    प्रमाणन: CE , R&TTE
    Model Number: MC011D8

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 100pcs
    मूल्य: Negotiation
    Packaging Details: Packed in bubble bags firstly, and then reinforced with carton or outer packing
    Delivery Time: 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
    Payment Terms: T/T, Western Union
    Supply Ability: 20,000pcs per Month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Product Name: Microwave motion sensor Rated load: Max.50WLED light
    Operating Voltage: 13 - 42vdc Detection: Max(D×H):16m×6m
    HF system: 5.8GHz ±75MHz, ISM wave band Size (L×W×H): 82x36.5x 25.5 mm(power supply part) 53x26.1x16mm(sensor part)
    Approval: CE & R&TTE Operation temperature: -20℃~50℃
    Function: ON-OFF 2 step dimming IP Rating: IP20



    Dimming function 5.8GHz DC operation Microwave motion sensor MC011D8, CE & R&TTE



    Description



    •   DC operation design
    •   Dimming function working with simple constant current led driver
    •   Hold time detection zone and daylight sensor can be set by DIP switch

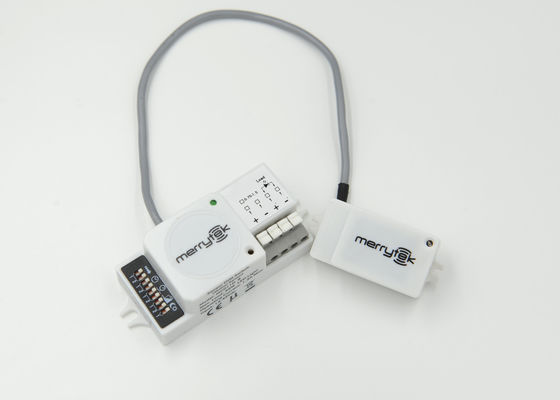

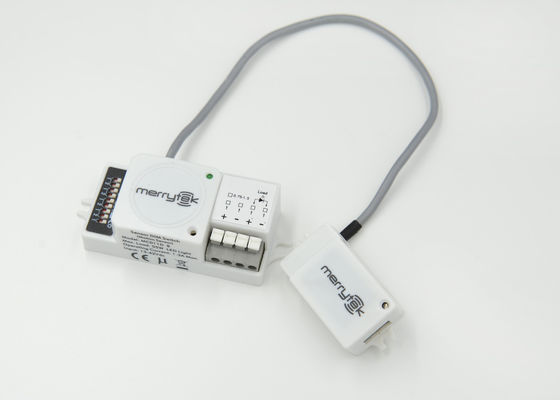

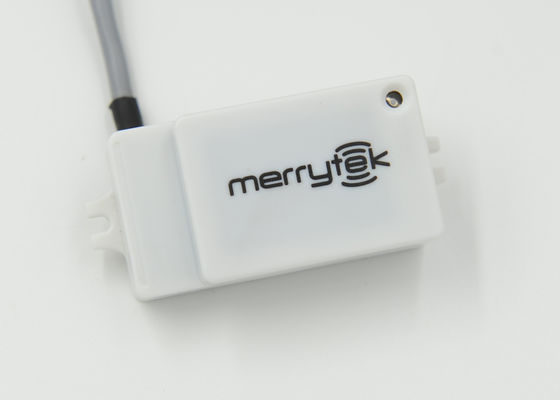

    •   Detachable design between sensor and power supply part
    •   Automatic switching based on motion and ambient light level.
    •   4-pole press-in terminal (L, N, N, L′), easy assembly.
    •   Compact size, suitable to fix within most luminaries.
    •   Wide detection area, range up to 16m in diameter.
    •   The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.



    On-off function



    2- Step dimming function



    Specifications:





    Operating voltage

    13 - 42Vdc

    Rated load

    Max.50WLED light

    Operating current

    1.3A max

    HF system

    5.8GHz±75MHz, ISM wave band

    Power consumption

    ≤0.5W(standby), <1W(operation)

    Transmitting power

    <0.5mW

    Detection zone Max.(D x H)

    16m x 6m

    Motion detection

    0.5~3m/s

    Detection angle

    150°(wall installation) 360°(ceiling installation)

    IP rating

    IP20

    Operation Temperature

    -20℃~50℃

    Hold time

    0s / 5min / 30min / Disable

    Detection sensitivity

    25%/50%/75%/100%

    Dimming level

    10%/20%/30% / 40%

    Stand-by period

    10s / 90s / 3min / 10min

    Dimming mode

    Gradual dimming

    Daylight Sensor

    30lux/Disable

    Life time

    50000 hours

    Guaranty

    5 years





    Applications:



    Stairwell, Corridor, Balcony, Pathway, etc.
