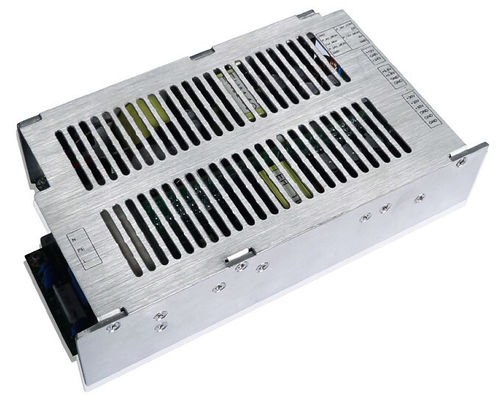

500W AC-DC Power Supplies Output 30V / 12A , 5.8V / 9A , 24V / 2.5A , 12V / 2.5A SC500-220Q30

500W AC-DC Power Supplies Output 30V / 12A , 5.8V / 9A , 24V / 2.5A , 12V / 2.5A SC500-220Q30

  • 500W AC-DC Power Supplies Output 30V / 12A , 5.8V / 9A , 24V / 2.5A  , 12V / 2.5A  SC500-220Q30
500W AC-DC Power Supplies Output 30V / 12A , 5.8V / 9A , 24V / 2.5A  , 12V / 2.5A  SC500-220Q30
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: Enargy
Model Number: SC500-220Q30
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1pcs
मूल्य: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
संपर्क करें
विस्तृत उत्पाद विवरण
हाई लाइट:

12v ac/dc power supply

AC-DC Power Supplies 500W Output 30V/12A,5.8V/9A,24V/2.5A,12V/2.5A  SC500-220Q30





Key Features

Input range:165~270Vac

Quadruple outputs:30V/12A,5.8V/9A,24V/2.5A,12V/2.5A

High efficiency:87%

Line regulation: ≤±2%

Load regulation: ≤±2%

Short circuit protection

Output over current protection

Output over voltage protection

Input over voltage protection

Input under voltage lock-out

Over temperature protection

RoHS compliant

Natural cool



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage



220



Vac



AC input voltage range

165



270

Vac



AC input frequency range

47



63

Hz



Max. input current





3.5

A

Min. input voltage, full load

Input inrush current





40

A

Max. input voltage,25℃, first start

Efficiency

85

87



%

Rated input voltage, rated load



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

30V

24

30

31

Vdc



5.8V

5.6

5.8

6

Vdc



24V

23

24

25

Vdc

Enable on/off

12V

11

12

13

Vdc

Enable on/off

Output current range

30V

0

9

12

A



5.8V

0

6

9

A



24V

0

2

2.5

A



12V

0

2

2.5





Line Regulation





±2

%



Load Regulation





±2

%



Temperature Regulation



±0.02



% / °C

Over operating temperature range

Ripple & noise

30V





400

mV

Rated input, full load, 20 MHz bandwidth

5.8V





116

mV

24V





280

mV

12V





240

mV

Turn-on rise time





500

ms

Full load,10%~90% Vout

Turn-on delay time





4

s

220Vac, Full load

Output voltage overshoot





±5

%





Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Input under voltage lock out

Turn-on voltage threshold

155



165

Vac



Turn-off voltage threshold

135



145

Vac



Input over voltage protection

Protect voltage

285



305

Vac



Recovery voltage

275



295

Vac



Output over voltage protection

30V

32



35

Vdc

Hiccup

5.8V





7.5

Vdc

Hiccup

Short – Circuit Protection





10

Hiccup

Over-temperature protection









Auto recovery

Input voltage detector

150-290Vac convert to 0.5-3.1Vdc linear change

Load conditions:

30V/9.5A,5.8V/6A,12V/2A,24V/2A

Input current detector

0-3A convert to 0.5-3.1Vdc linear change





General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

100





KHrs

Rated input, full load,25℃

Weight





1500

g





Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

-40



+75



Storage temperature

-40



+85



Relative humidity

10



90

%



Storage humidity

10



95

%



Altitude





4000

m



Atmospheric pressure

70



106

KPa





Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

1500





Vac

5mA/1min, No arcing and breakdown

Input to ground

1500





Vac

Output to ground

500





Vdc

5mA/1min, No arcing and breakdown

Isolation resistance

Input to output

10





500Vdc/1min, normal atmospheric pressure, 90% humidity

Leakage current

Input to ground





3.5

mA

264Vac,normal condition



EMC Characteristics

Item

Standards

Conditions

Notes

CE

EN301489-1-8.4

Class B

Pass system test

RE

EN301489-1-8.4

Class B

Pass system test

Harmonic

EN301489-1-8.5





Voltage fluctuations and flicker

EN301489-1-8.6





Surge

EN61000-4-5

Differential mode ±2KV,common mode±4KV

Criterion B

DIP

EN61000-4-11

EN55024

Voltage dip to 0%Ut,10ms

Criterion B, test at phase 0, 90, 180 and 270

Voltage dip to 40%Ut, 20ms

Voltage dip to 70%Ut,50ms

Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.



Environmental Qualification

Parameter

Notes

Vibration

Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis

Mechanical Shock

Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction

Temperature Cycling

-40°C to 55°C, ramp 1°C/min., 6 cycles

Power/Thermal Cycling

Vin = min to max, full load, 100 cycles



Mechanical Outline

Length×width×heigth:210×115.5×52(mm), 8.27×4.55×2.05(in),

500W AC-DC Power Supplies Output 30V / 12A , 5.8V / 9A , 24V / 2.5A  , 12V / 2.5A  SC500-220Q30 0



Connector designAations

CN9  Model: H101-5/3.96

Pin#

Name

1

L

2

NC

3

PE

4

NC

5

N
















J2  Model: H101-5/3.96

Pin#

Name

1

+30V

2

+30V

3

+30V

4

GND

5

GND

6

GND



CON1  Model: H101-4/3.96

Pin#

Name

1

+5.8V

2

+5.8V

3

GND

4

GND



J3  Model: H101-3/3.96

Pin#

Name

1

+12V

2

GND

3

+24V



J1

Pin#

Name

Notes

1

GND

GND

2

P_30V_CON

30V trim

3

P_AC_CON

Input voltage detect

4

ID0

Connect to GND

5

Cur_Mon

Input current detect

6

P_12V_CON

12V Enable

7

P_24V_CON

24V Enable

8

ID1

Connect to GND

9

GND

GND

10

GND

GND
