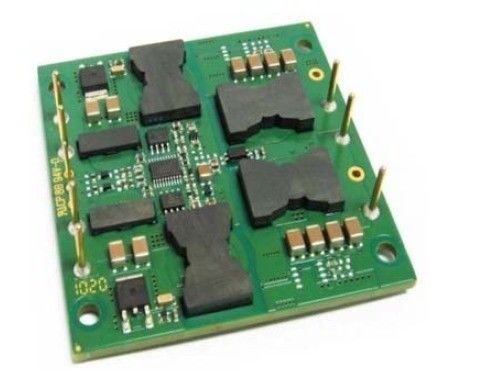

Military Power Supply 150W Output 12V JS150-24S12-POC





Key Features

Output power: 150W

Wide input range: 18-36Vdc

High conversion efficiency: 88%

Line regulation to ±0.5%

Load regulation to ±0.5%

Fixed operating frequency

Isolation voltage :1500V

Enable (ON/OFF) control

Output over-load protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim: ±10%



Product Overview

These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.



Product’s Introduction

The JS series is an independently regulated single output converter that uses the industry nonstandard brick package size. The very high efficiency is a result of ENARGY CORP patented topology that uses synchronous rectification and an innovative construction design to minimize heat dissipation and allow extremely high power densities. The power dissipated by the converter is so low that a heat sink is not required, which saves cost, weight, height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate with highyield surface mount technology, resulting in a more reliable product.



1. Electric Characteristics

·Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature, unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data testing at Ta=25oC except especial definition.





1.1 Absolute Maximum Ratings

Parameter

Min

Typ

Max

Units

Notes

Input Voltage





38

Vdc

Continuous, non-operating





36

Vdc

Continuous, operating





38

Vdc

Operating transient protection,<100mS

Isolation Voltage





2000

Vdc

Input to Output

Operating Temperature

-40



100



Storage Temperature

-55



105



Enable to Vin- Voltage

-2.0



10

Vdc





1.2 Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Input Voltage Range

18

24

36

Vdc

Continuous

Under-Voltage Lockout



16.8

17.8

Vdc

Turn-on Threshold

15.3

16.2



Vdc

Turn-off Threshold

Maximum Input Current





11

A

Full Load;18Vdc Input

Efficiency



88



%

Full load, rating input voltage,

Figures 1-4

Dissipation



3



W

Min. Load

Disabled Input Current



10



mA

Enable pin low

Recommend External Input

Capacitance



100



μF

Typical ESR 0.1-0.2Ω



1.3 Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output Voltage Set point

11.88

12.00

12.12

Vdc

Nominal input; No load

Output Voltage Range

11.76

12.00

12.24

Vdc



Output Current Range

0.1



12.5

A

Subject to thermal derating; Figures 5-8

Line Regulation



±0.02

±0.50

%

Low line to high line; full load

Load Regulation



±0.02

±0.50

%

Min. load to full load; nominal input

Temperature Regulation



±0.03

±0.05

% / °C

Over operating temperature range

Current Limit

13.75

15

16.3

A

Output voltage 95% of nominal

Short Circuit Current

0.1

15

16.3

A

Output voltage <250 mV

Ripple (RMS)



20



mV

Nominal input; full load; 20 MHz

bandwidth, Figure 13

Noise(Peak-to-Peak)



120



mV

Maximum Output Cap.



8000



μF

Nominal input; full load

Output Voltage Trim





±10

%

Nominal input; full load;



1.4 Dynamic Response Characteristics

Parameter

Min

Typ

Max

Units

Notes

Change In Output Current

(di/dt= 0.1A/μs)



360



mV

50% to 75% to 50% Iout max; Figure 11

Change In Output Current

(di/dt= 2.5A/μs)



480



mV

50% to 75% to 50% Iout max; Figure 12

Settling Time



200



μS

To within 1% Vout nom.

Turn-on Time



10



mS

Full load; Vout=90% nom. Figure 9

Shut-down Fall Time



300



μS

Full load; Vout=10% nom. Figure 10

Output Voltage Overshoot





3

%





1.5 Functional Characteristics

Parameter

Min

Typ

Max

Units

Notes

Switching Frequency

180

200

220

KHz

Regulation stage and Isolation stage

Trim(Pin8)

Voltage Trim(Pin8)

Output Voltage Trim





10

%

Trim Up, Trim Pin toVout(-)

10





%

Trim Down, Trim Pin to Vout (+)

Enable(ON/OFF)Control(Pin4)

See part 7.1

Enable Voltage

Enable Source Current



5



Vdc

Enable pin floating



1



mA



Enable (ON/OFF) control

Positive Logic

5



10

Vdc

ON-Control, Logic high or floating

-0.5



2.0

Vdc

OFF-Control, Logic low

Over-Load Protection

110

120

130

%

Current-Mode, Pulse by Pulse Current

Limit Threshold,(%Rated load)

Short -Circuit Protection



80



Type: Hiccup Mode, Non-Latching,

Auto-Recovery,Threshold,Short-Circuit

Resistance

Over-Temperature

Protection



105



Type: Non-Latching, Auto-Recovery;

Threshold, PCB Temperature



15



Hysteresis



1.6 Isolation Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation Voltage

1500





Vdc

Input to Output

1500





Vdc

Input to Base

500





Vdc

Output to Base

Isolation Resistance

10





At 500Vdc to test it when atmospheric pressure and R.H. is 90%

Isolation Capacitance



1000



pF





2. General Characteristics

Parameter

Min

Typ

Max

Units

Notes

Weight



3.5(99)



Oz (g)

Encapsulated

MTBF ( calculated )

1





MHrs

TR-NWT-000332;80% load,300LFM,

40℃ Ta



3. Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating Temperature

-40



+100

Extended, base PCB temperature

Storage Temperature

-55



+105

Ambient

Temperature Coefficient





±0.05

%/℃



Humidity

20



95

%R.H.

Relative Humidity, Non - Condensing



4. Standards Compliance

Parameter

Notes

UL/cUL60950



EN60950



GB4943



Needle Flame Test (IEC 695-2-2)

Test on entire assembly; board & plastic components UL94V-0 compliant

IEC 61000-4-2





5. Qualification Specification

Parameter

Notes

Vibration

10-55Hz sweep, 1 min./sweep, 120 sweeps for 3 axis

Mechanical Shock

100g min, 2 drops in x and y axis, 1 drop in z axis

Cold(in operation)

IEC60068-2-1 Ad

Damp Heat

IEC60068-2-67 Cy

Temperature Cycling

-40°C to 100°C, ramp 15°C/min., 500 cycles

Power/Thermal Cycling

Vin = min to max, full load, 100 cycles

Design Marginality

Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load

Life Test

95% rated Vin and load, units at derating point, 1000 hours

Solderability

IEC60068-2-20



6. Typical Wave And Curves

150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 0

Figure 1: Efficiency at nominal output voltage vs. load current for minimum, nominal, and maximum input voltage at 25°C.



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 1

Figure 2: Efficiency at nominal output voltage and 60% rated power vs. airflow rate for ambient air temperatures of 25°C, 40°C, and 55°C (nominal input voltage).



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 2

Figure 3: Power dissipation at nominal output voltage vs. load current for minimum, nominal, and maximum input voltage at 25°C.



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 3

Figure 4: Power dissipation at nominal output voltage and 60% rated power vs. airflow rate for ambient air

temperatures of 25°C, 40°C, and 55°C (nominal input voltage).



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 4

Figure 5: Maximum output power derating curves vs. ambient air temperature for airflow rates of 0 LFM through 400 LFM with air flowing from pin 1 to pin 5 (nominal input voltage).



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 5

Figure 6: Thermal plot of converter at full load current (150W) with 25°C air flowing at the rate of 100 LFM. Air is flowing across the converter from pin 1 to pin 5 (nominal input voltage).



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 6

Figure 7: Maximum output power-derating curves vs. ambient air temperature for airflow rates of 0 LFM through 400 LFM with air flowing from input to output (nominal input voltage).



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 7

Figure 8: Thermal plot of converter at full load current (150W) with 25°C air flowing at the rate of 100 LFM. Air is flowing across the converter from input to output (nominal input voltage).



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 8

Figure 9: Turn-on transient at full load (resistive load) (20 ms/div).Input voltage pre-applied. Ch 1: Vout (5V/div).Ch 2: ON/OFF input(5V/div)



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 9

Figure 10: Shut-down fall time at full load (400 μs/div). Ch 1: Vout (5V/div).Ch 2: ON/OFF input (5V/div).



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 10

Figure 11: Output voltage response to step-change in load current (50%-75%-50% of Iout(max); dI/dt = 0.1A/μs). Load cap: 10μF, 100 mΩ ESR tantalum capacitor and 1μF ceramic capacitor. Ch 1: Vout (100mV/div).



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 11

Figure 12: Output voltage response to step-change in load current (50%-75%-50% of Iout(max): dI/dt = 2.5A/μs). Load cap: 470μF, 30 mΩ ESR tantalum capacitor and 1μF ceramic cap. Ch 1: Vout (100mV/div).



150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 12

Figure 13: Output voltage ripple at nominal input voltage and rated load current (100mV/div). Load capacitance: 1μF ceramic capacitor and 10μF tantalum capacitor. Bandwidth: 20 MHz.



7. Physical Information

7.1 Mechanical Outline

150W Military Power Supplies Output 12 Volt / 18 - 36V dc  input JS150-24S12-POC 13



Notes:

1. Pins 3 are 0.040” (1.02mm) dia.

2. All other pins are 0.060” (1.52mm) dia.

3. Tolerances: x.xx±0.02 in. (x.x±0.5mm)

x.xxx±0.010 in. (x.xx±0.25mm)



7.2 Pin Designations

Pin No.

Name

Function

1

Vin(+)

Positive input voltage

2

Vin(+)

Positive input voltage

3

Enable

TTL input to turn converter ON and OFF, referenced to Vin(-), with internal pull up.

4

Vin(-)

Negative input voltage

5

Vin(-)

Negative input voltage

6

Vout(-)

Negative output voltage

7

Vout(+)

Positive output voltage

8

Trim

Output voltage trim. Leave TRIM pin open for nominal output voltage.
